Acids Vapors DG-FILTER 721

$571.98

PDF Icon Filter specifications

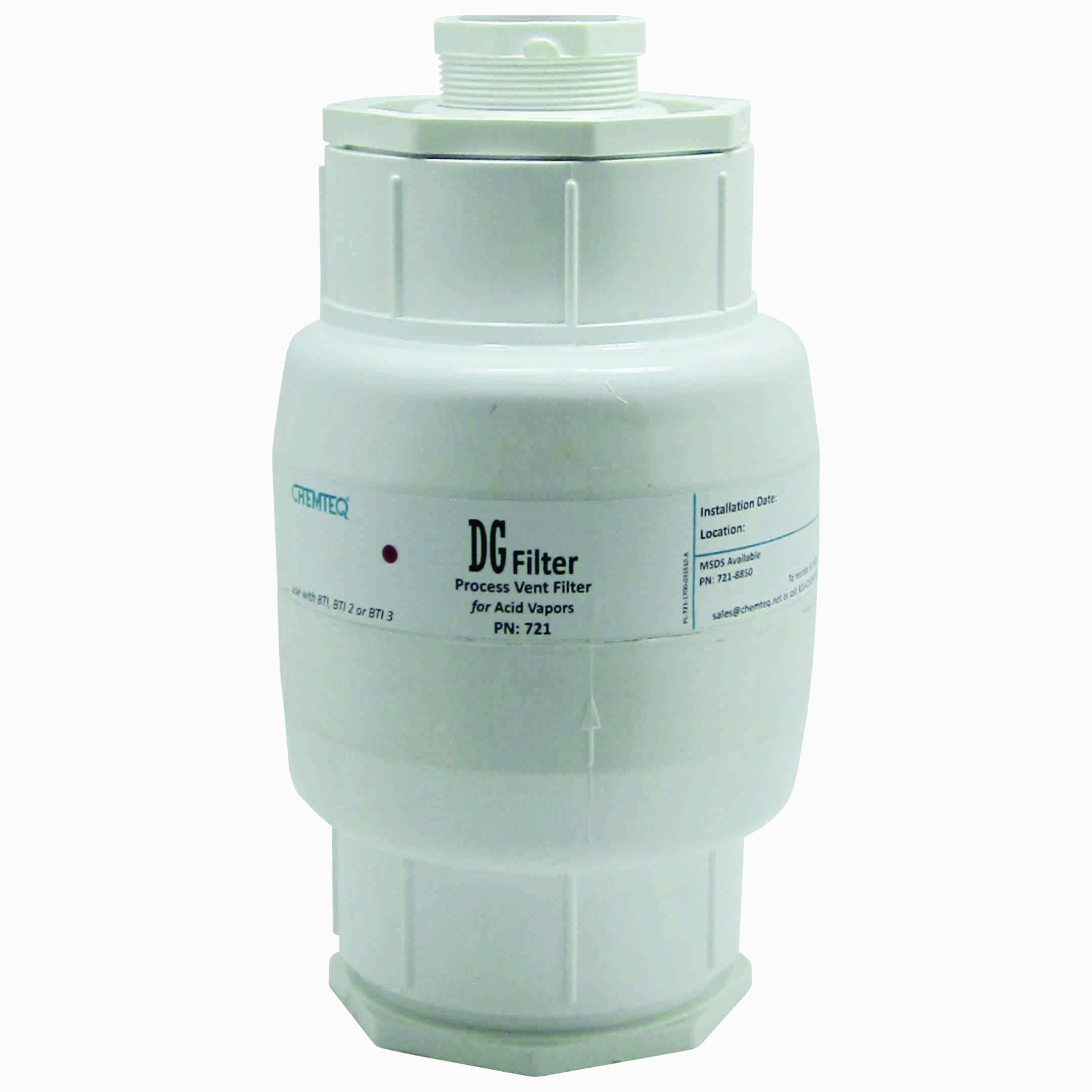

Acids Vapors DG-FILTER 721 – Acid Gas Scrubber for Chemical Processes

The Acids Vapors DG-FILTER 721 is a high-efficiency acid gas scrubber and carbon scrubber, specifically engineered for demanding environments such as chemical processes and reactor vents. Designed with a special blend of sorbent media, this unit delivers maximum absorption of acid gases and vapors, ensuring cleaner emissions and workplace safety.

For real-time monitoring, pair this filter with Chemteq’s BTI or BTI2 gas vapor detectors (sold separately). This allows continued protection against hazardous exposure.

Key Benefits:

  • Compatible with acid gases such as acetic acid, hydrochloric acid, nitric acid, and halogenated organic acids
  • Refillable with fresh sorbent media for sustainable use
  • Ideal for reactor vents, drum filters, and chemical scrubber systems
  • Works seamlessly with BTI/BTI2 filter change indicators for safe operation

Applications:

  • Reactor vent gas filtration
  • Acid vapor scrubbing in chemical processes
  • Integration with inline filters, drum filters, and carbon filter systems
  • Reduction of organic vapors and acid gases in confined industrial spaces
  • Compatible with inline activated carbon filters for broader VOC removal

Acids Vapors DG-FILTER 721

Filter Specifications:

A Length: 0.5lb (4.76kg)
b Diameter: 5.7
c Operating temperature: -20oC to 50oC (-4oF to 122oF)
d Operating humidity: 5% RH to 95%RH
e Inlet and outlet: 0.75 or 1.5 female NPT*
f Sorption media: 4.5lb (2.05kg)
g Allowable fluid: Gases and vapors
h Optimum air flow: Static to 0.5 liter per minute
i Recommendation Use filter with BTI (3.5x 1, 0.75 NPT) or BTI2 (4.5x 2, 1.5 NPT). sold seperate

* NPT = National pipe thread

Weight 11 lbs
Dimensions 10 × 10 × 14 in
