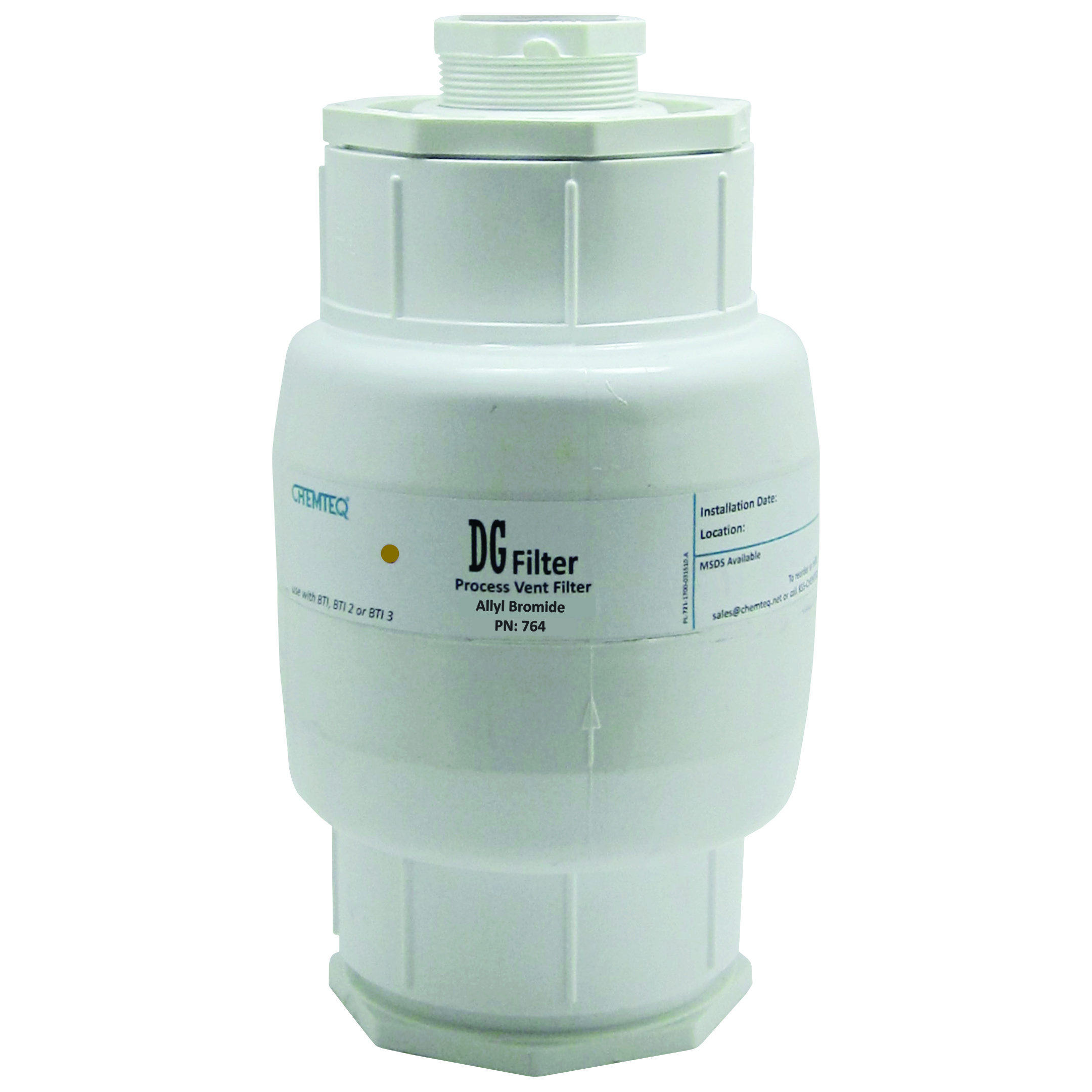

Allyl Bromide DG-FILTER 764 – Acid Gas Scrubber for Chemical Processes
The Allyl Bromide DG-FILTER 764 is an efficient and reliable carbon scrubber designed specifically for handling allyl bromide and similar toxic gases and vapors. This industrial-grade carbon scrubber is ideally suited for chemical processes and reactor vents, delivering maximum sorption through its proprietary blend of sorbent media.
To maintain safe operations and prevent toxic gas breakthrough, the filter is compatible with Chemteq’s BTI and BTI2 filter change indicators. These real-time gas vapor detection tools alert users when it’s time to replace the filter, reducing the risk of exposure. BTI and BTI2 are sold separately.
Key Features:
- Easy-to-refill design for long-term use
- Compatible with BTI and BTI2 indicators for real-time monitoring
- Suitable for chemical reactors, drum filters, and inline filter systems
- Supports a range of applications including organic vapors, 3-bromopropene, and inline carbon filter use cases
Technical Applications:
This filter is effective in processes involving:
- 3-bromopropene DG-FILTER 764
- Integration with inline activated carbon filters
- Emission control in reactor vents
Filter Specifications:
| A | Length: | 10.5lb (4.76kg) |
| b | Diameter: | 5.7 |
| c | Operating temperature: | -20oC to 50oC (-4oF to 122oF) |
| d | Operating humidity: | 5% RH to 95%RH |
| e | Inlet and outlet: | 0.75? or 1.5? female NPT* |
| f | Sorption media: | Up to 5 lb. |
| g | Allowable fluid: | Gases and vapors |
| h | Optimum air flow: | Static to 0.5 liter per minute |
| i | Recommendation | Use filter with BTI (3.5?x 1?, 0.75? NPT) or BTI2 (4.5?x 2?, 1.5? NPT). sold separately |
