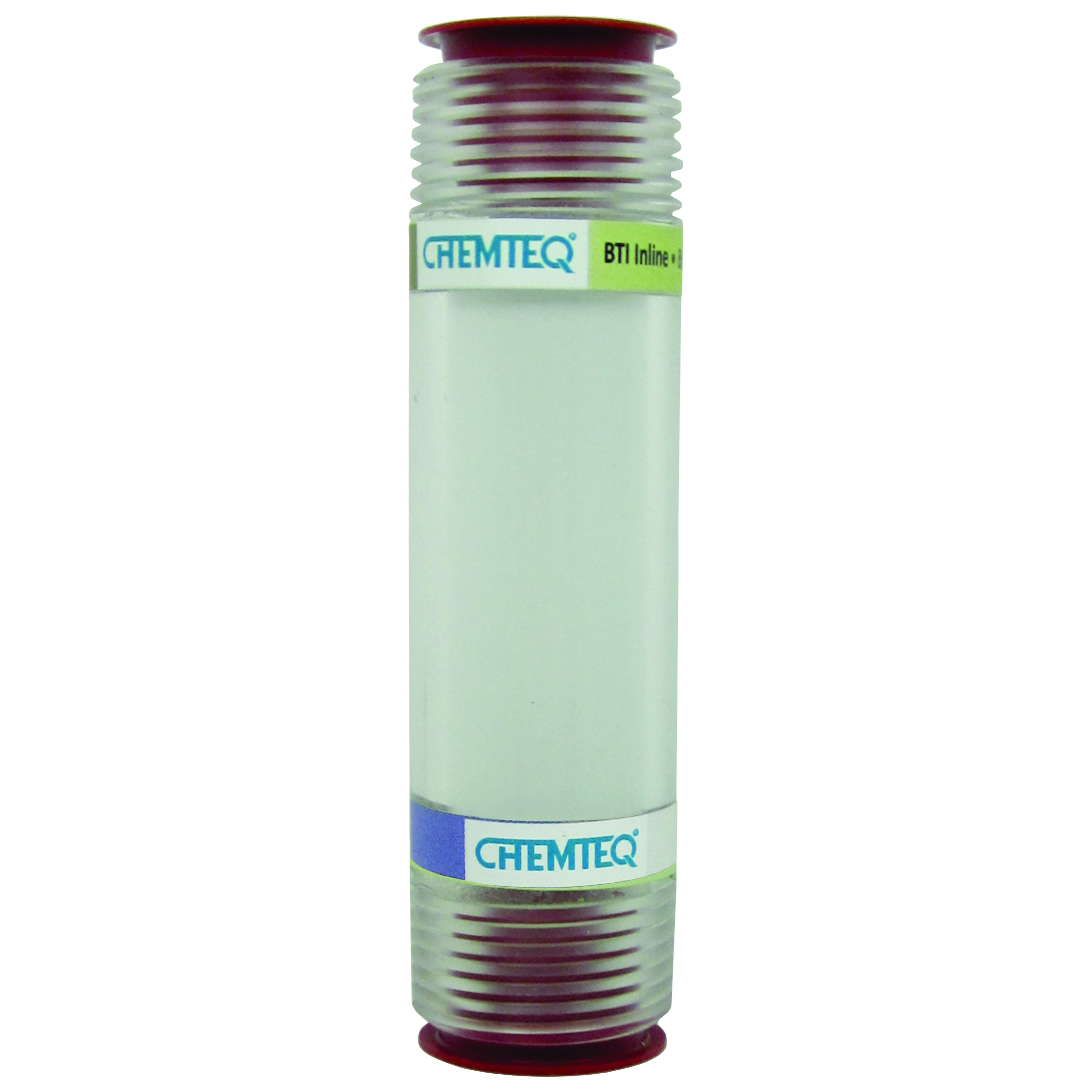

Ammonia & Hydrogen Sulfide Breakthrough Indicator-Inline is reliable and cost effect means for protection from exposure to ammonia and hydrogen sulfide. Easily connect inline with ?? male, male NPT inlet and outlet. You can observe the bright vibrant color change from all directions.
|
a |
Weight: | 28g (1.0oz) |
|
b |
Dimensions: |
89.9mm (3.5in), diameter 24.5mm (1.0in) |
|
c |
Inlet and outlet dimensions: |
?” MNPT |
|
d |
Operating temperature: | -20oC to 65oC (-4oF to 149oF) |
|
e |
Operating humidity: |
5% RH to 95%RH |
|
f |
Minimum detectable limit: | 10ppm?hr NH3, 1ppm?min H2S at 30 cm/sec face velocity |
|
g |

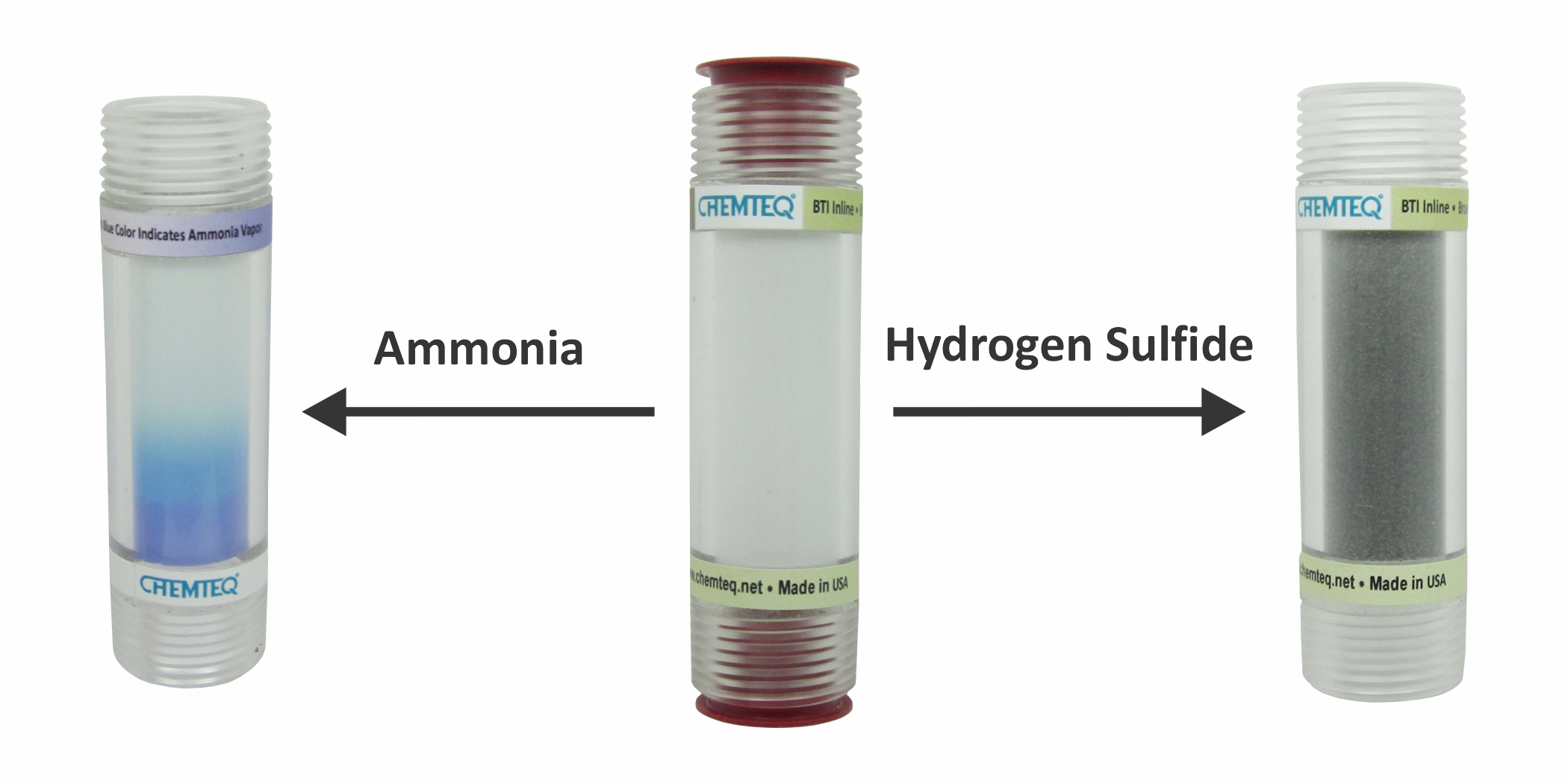

Color change: |
Light blue to purple or black |
|
h |
Storage temperature: | 4oC to 25oC, (39oF to 77oF) |
|
i |
Shelf life: | 2 years at 4oC to 25oC, (39oF to 77oF) |
|
j |
Service life: | 2 years |
Refill Kit
THE AMMONIA & HYDROGEN SULFIDE BTI INLINE CAN BE REUSED BY REPLACING THE EXHAUSTED AMMONIA & HYDROGEN SULFIDE INDICATOR WITH FRESH INDICATOR ASSEMBLY.
Ammonia & Hydrogen Sulfide BTI Inline Refill Kit Item No.603-5000 Includes:
1- One Ammonia & Hydrogen Sulfide Indicator Assembly (Item No. 603-1600)
2- Two Porous Plugs (Item No. 617-1400)
Miniature-Hook Pick (Item No. 431-9100) Optional
