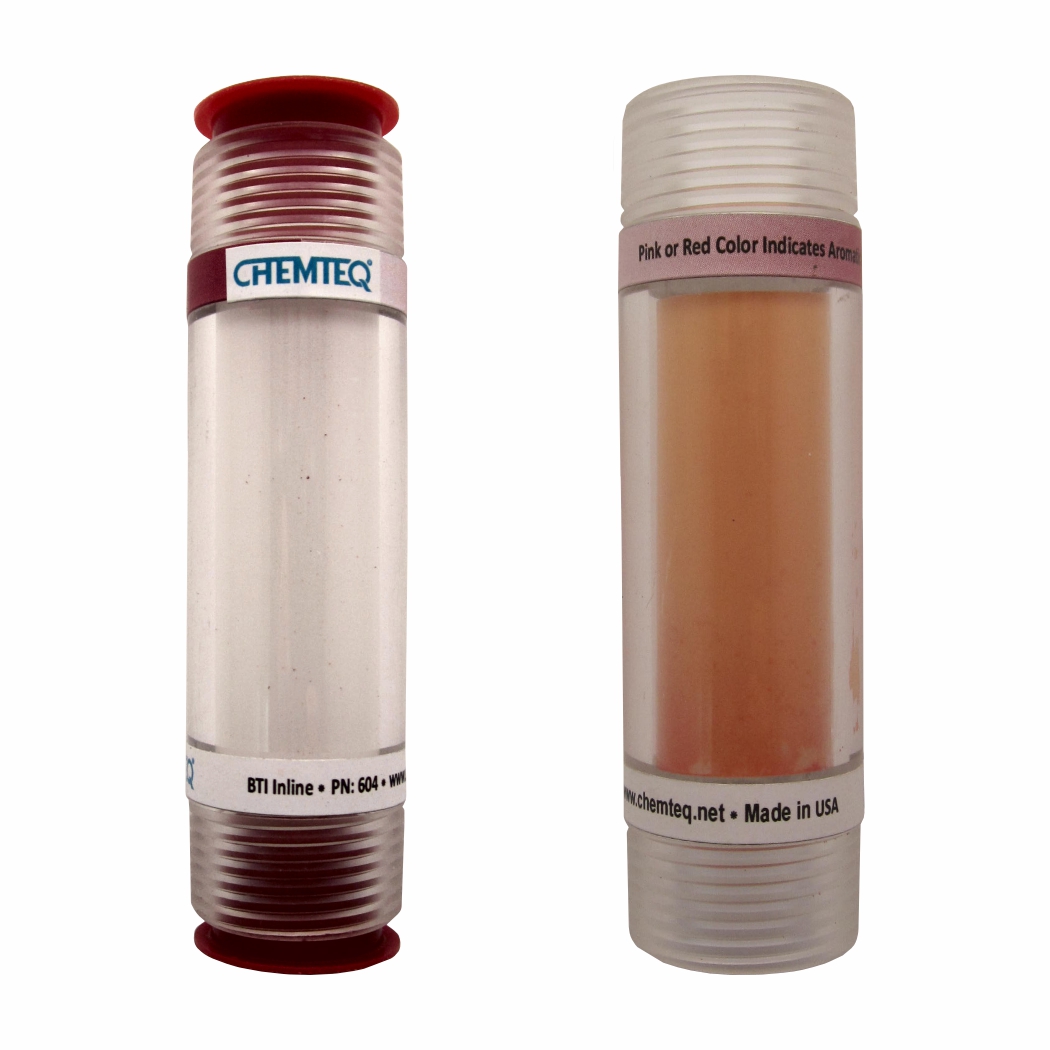

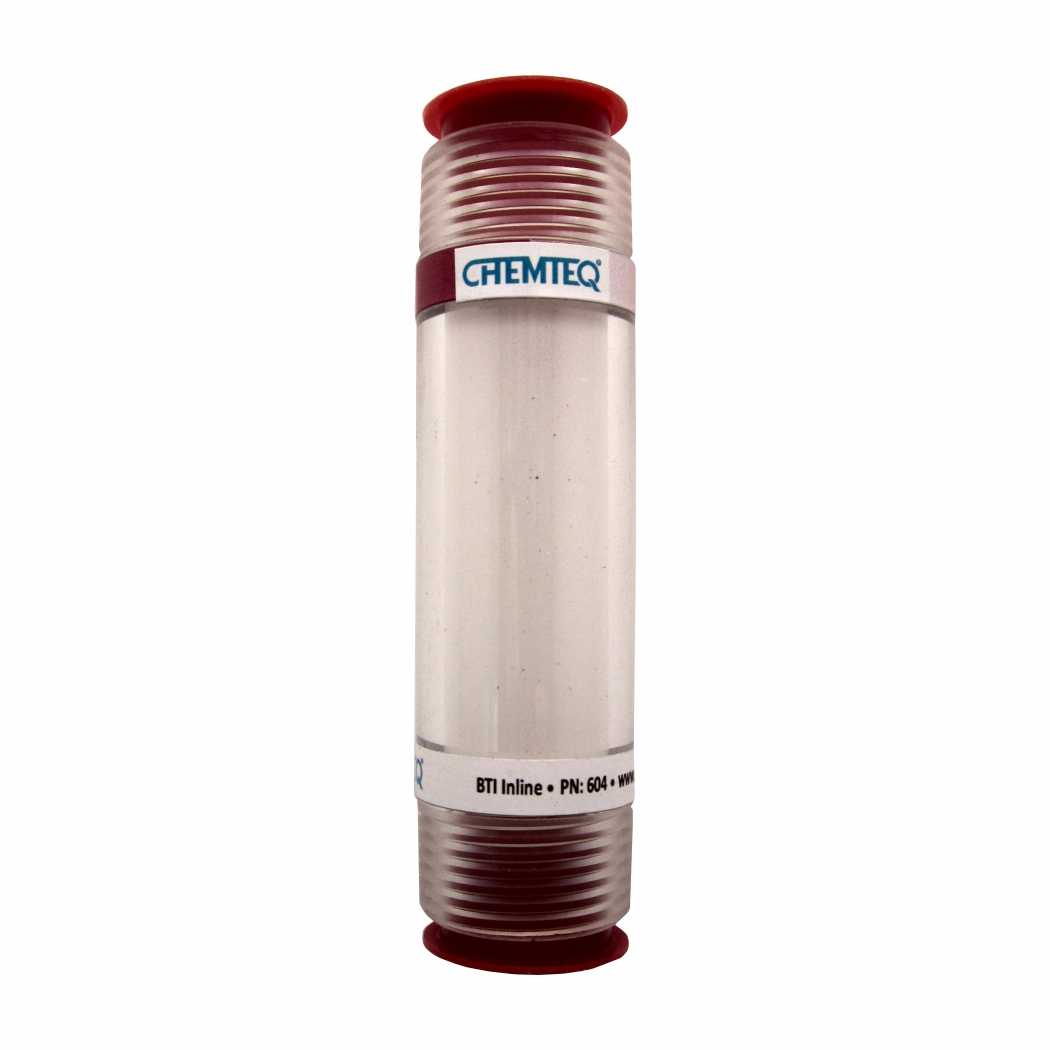

Aromatic Diisocyanates Breakthrough Indicator-Inline. detects vapor as well as aerosol and dimers. You can easily connect the indicator inline with ?? male, male NPT inlet and outlet and? you can observe the bright vibrant color change from all directions.
PN 604
Product Specifications
|
a |
Weight: | 28g (1.0oz) |
|
b |
Dimensions: |
89.9mm (3.5in), diameter 24.5mm (1.0in) |
|
c |
Inlet and outlet dimensions: |
?” MNPT |
|
d |
Operating temperature: | -20oC to 55oC (-4oF to 131oF) |
|
e |
Operating humidity: | 5% RH to 85%RH |
|
f |
Minimum detectable limit: | 4ppb?hr at 30 cm/sec face velocity |
|
g |
Color change: |
Off white to pink to brownish red?? |
|
h |
Storage temperature: | 4oC to 25oC, (39oF to 77oF) |
|
i |
Shelf life: | 14 months at 4oC to 25oC, (39oF to 77oF) |
|
j |
Service life: | 14 months |
REUSE THE AROMATIC DIISOCYANATES BTI INLINE? BY REPLACING THE CONSUMED INDICATOR WITH FRESH INDICATOR ASSEMBLY.
Aromatic Diisocyanates BTI Inline Refill Kit Item No.604 5000 Includes:
1- One Aromatic Diisocyanates Indicator Assembly (Item No. 604 1600)
2- Two Porous Plugs (Item No. 617 1400)
Miniature-Hook Pick (Item No. 431 9100) Optional
Please call us?(1-855-2436837) or email us
