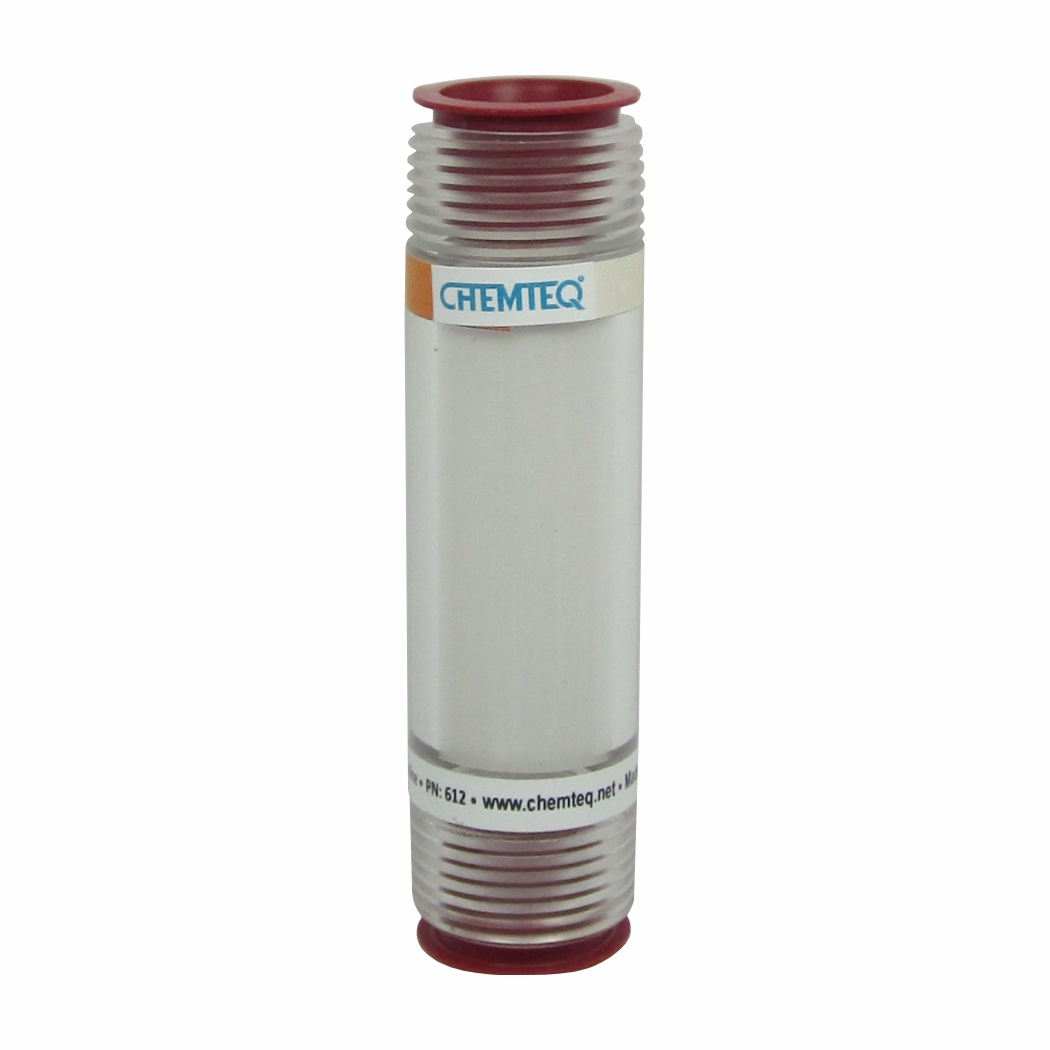

Mercury Breakthrough Indicator Inline is reliable and cost effect means for protection from exposure to toxic mercury. It indicates mercury and mercury II compounds. The indicator is easily connected in-line with ?? male, male NPT inlet and outlet. You can observe the bright vibrant color change from all directions.
PN 612
Product Specifications
|
a |
Weight: | 28g (1.0oz) |
|
b |
Dimensions: |
89.9mm (3.5in), diameter 24.5mm (1.0in) |
|
c |
Inlet and outlet dimensions: |
?” MNPT |
|
d |
Operating temperature: | -20oC to 55oC (-4oF to 131oF) |
|
e |
Operating humidity: | 5% RH to 85%RH |
|
f |
Minimum detectable limit: | 0.5mg/m3?hr at 30 cm/sec face velocity |
|
g |

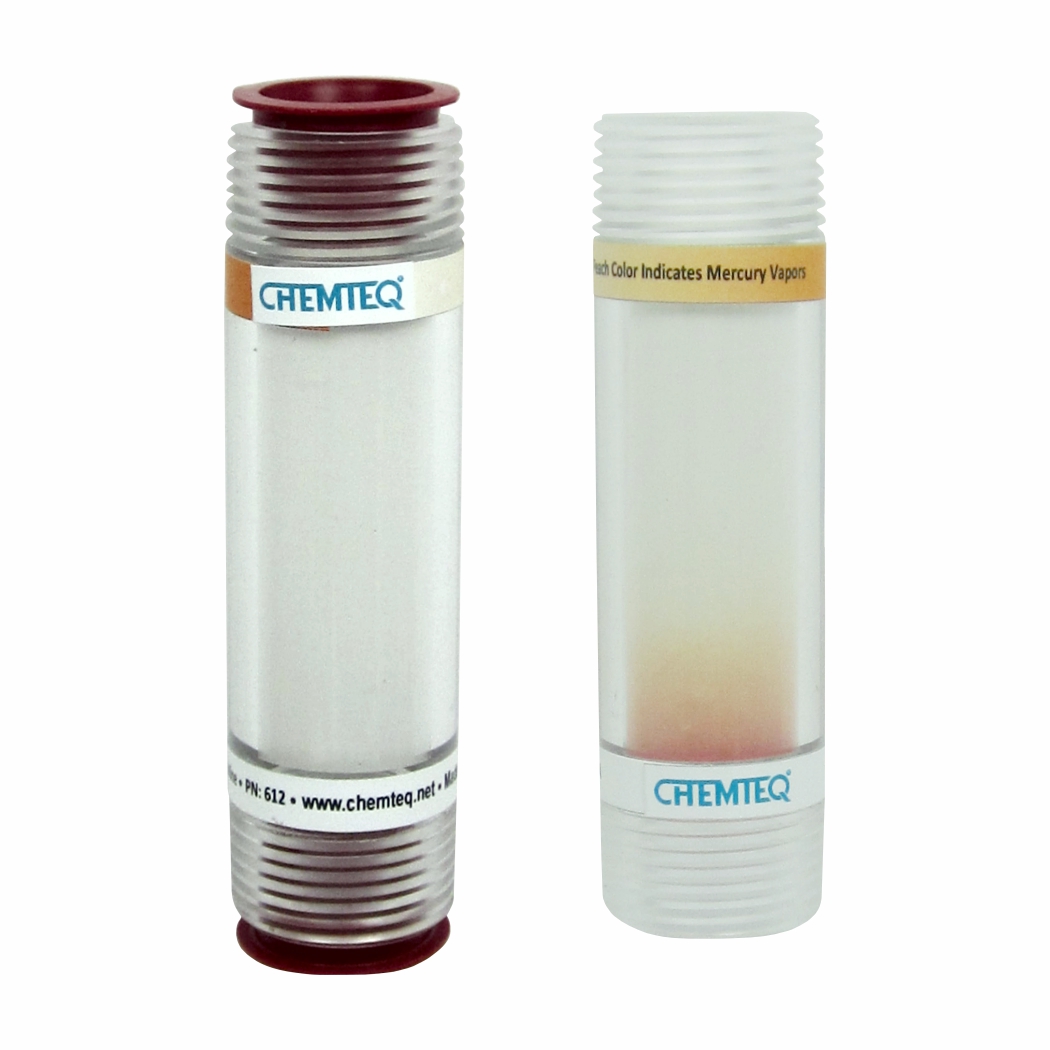

Color change: | Off white to peach |
|
h |
Storage temperature: | 4oC to 25oC, (39oF to 77oF) |
|
i |
Shelf life: | 1 year at 4oC to 25oC, (39oF to 77oF) |
|
j |
Service life: | 1 year |
THE MERCURY & MERURY II COMPOUNDS? BTI INLINE CAN BE REUSED BY REPLACING THE EXHAUSTED MERCURY INDICATOR WITH FRESH MERCURY INDICATOR ASSEMBLY.
The mercury & mercury II compounds BTI Inline Refill Kit Item No.612-5000 Includes:
1- One mercury & mercury II compounds Indicator Assembly (Item No. 612-1600)
2- Two Porous Plugs (Item No. 617-1400)
Miniature-Hook Pick (Item No. 431-9100) Optional
Please call us?(1-855-243-6837) or?email us
