Organic Vapors DG FILTER-761 is an efficient and reliable filter.? Most suited for chemical processes and reactor vents. Special blend sorbent media for maximum sorption of acid gases and vapors. Easy refilling of consumed sorption media. For best results, use with corresponding filter change indicators, BTI or BTI2.? Filter change indicator alters user in real time to replace filter. BTI and BTI2 are sold separate.
Filter Specifications:
| A | Length: | 11? |
| b | Diameter: | 5.7? |
| c | Operating temperature: | -20oC to 55oC (-4oF to 131oF) |
| d | Operating humidity: | 5% RH to 85%RH |
| e | Inlet and outlet: | 0.75? or 1.5? female NPT* |
| f | Sorption media: | Up to 5 lb. |
| g | Allowable fluid: | Gases and vapors |
| h | Optimum air flow: | Static to 500cc/min |
| i | Recommendation | Use filter with BTI (3.5?x 1?, 0.75? NPT) or BTI2 (4.5?x 2?, 1.5? NPT). sold separately |
* NPT = National pipe thread
Suitable for Chemical Processes and Reactors Vents
Easy refilling of consumed sorption media

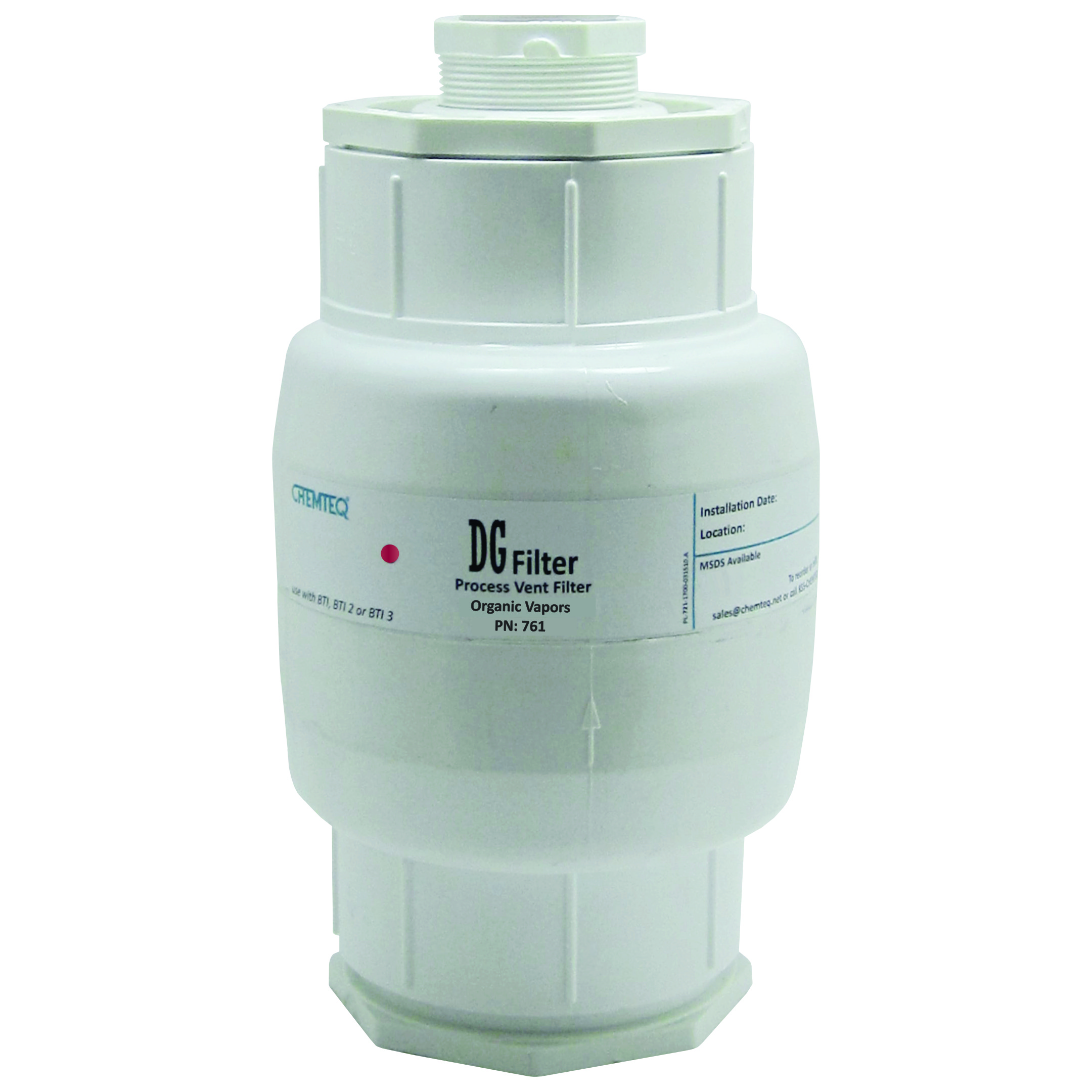

Organic Vapors DG FILTER-761
